Mold Development and Tooling for Custom Smartwatch Projects

In wearable device manufacturing, smartwatch mold development is the step that makes or breaks a project. A precise mold delivers tight fits, stable finishes, and repeatable output - exactly what OEM/ODM programs need. Whether the target is an elderly-care smartwatch, a safety pendant, or a telecare hub, understanding the tooling path helps you plan smarter and budget with confidence. At JiAi Intelligent Technology, we've spent more than a decade guiding global clients from concept to stable, mass-production tooling. Below, we share how we approach the journey - from early feasibility to production-grade tools - so you can de-risk decisions and accelerate launch.

Why Mold Development Matters in Wearable Manufacturing

Mold design influences durability, comfort, and brand perception. On compact products such as watches and trackers, there is no room for error. A well-engineered injection mold for smartwatch housing aligns housings with PCBA, sensors, antennas, gaskets, and batteries. It also protects ingress-protection targets and stabilizes cosmetic quality across long runs.

• Waterproofing and dust sealing rely on tight tolerances and consistent wall thickness.
• Surface uniformity controls color matching and texture from batch to batch.
• Balanced flow reduces weld lines, sinks, and warpage on visible faces.
• Long tool life keeps quality stable as volumes grow.

When these factors are resolved up front, custom smartwatch tooling turns into a speed advantage instead of a bottleneck.

Step 1: From ID Design to Tooling Feasibility

We begin as soon as industrial design is frozen. Our mechanical team translates appearance intent into a structure that can be molded, assembled, and tested at scale. Early DFM feedback saves both time and wearable device mold cost, because issues caught in CAD are cheaper than changes made in steel.

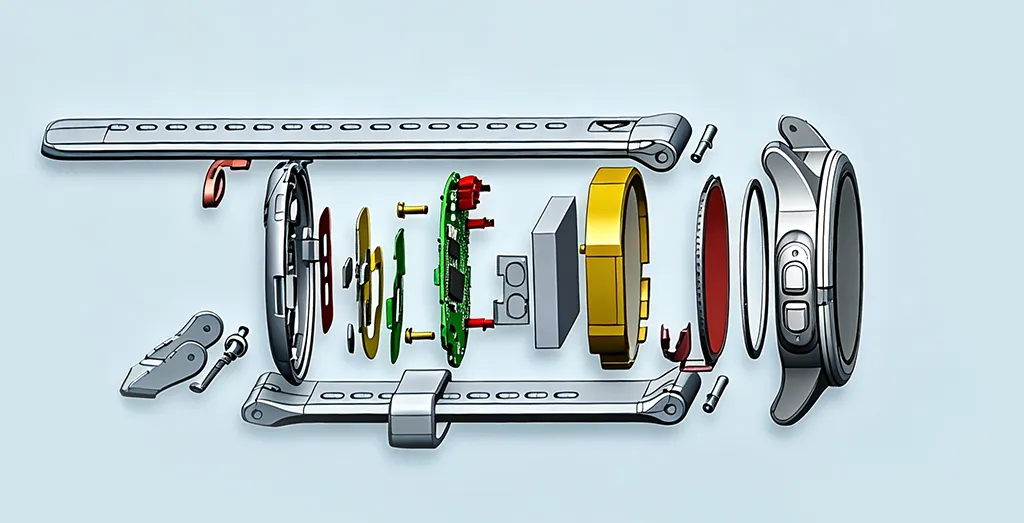

We check wall thickness, ribs, and draft; confirm clearances for batteries, PCBs, sensors, and FPCs; map antenna windows and button travel; and propose gasket geometries that support IP67/68 targets. Materials are shortlisted - PC, ABS, PC+ABS for housings; TPU or silicone for straps and overmolds - based on strength, chemical resistance, and cosmetic goals. The result is a "mold-ready” package that keeps downstream iteration lean.

Step 2: Mold Design and Material Selection

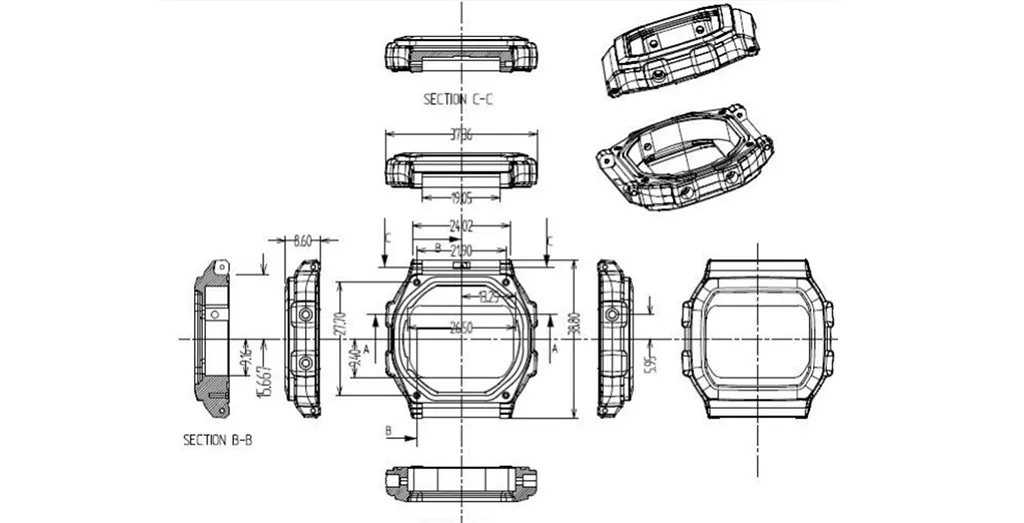

Once feasibility is locked, the tooling team builds a 3D mold layout: core and cavity, sliders and lifters, ejectors, cooling, gates, and vents. Here we balance aesthetics with dimensional stability.

For trials and runs under 5,000 units, aluminum tooling offers speed and learning. For sustained production, steels such as NAK80, H13, or S136 deliver hardness, polishability, and wear resistance. If the forecast supports it, multi-cavity tools reduce per-unit cost and shorten cycles - an effective lever on wearable device mold cost.

Surface targets drive details. Mirror polishing supports glossy bezels; EDM textures or bead-blasted finishes produce refined matte surfaces. Gate placement and venting are tuned so visible faces avoid flow marks and knit lines, keeping custom smartwatch tooling aligned with brand-level cosmetics.

Step 3: Mold Fabrication and Trial Injection

Fabrication combines CNC machining, EDM, bench fitting, and polishing into a production-ready tool. Typical lead times range from about 15 - 20 days for prototype tooling to roughly 30 - 45 days for mass-production tools, depending on part complexity and cavity count. We prove the tool with T0 sampling and measure the results against CAD and real electronics.

Engineers review shrinkage, warpage, flash, and sinks; they validate dimensions at critical interfaces and test assembly with live PCBA and gaskets. Iterations (T1, T2, and so on if required) fine-tune steel conditions, cooling, and gating. The goal is simple: an injection mold for smartwatch housing that produces repeatable, cosmetically stable parts at the target cycle time. With an in-house tool shop, we can cut iteration time dramatically and keep schedules intact.

Step 4: Surface Treatment and Color Finishing

With geometry validated, we build perceived value through finishing. Smartwatches and care wearables live on the skin and face sweat, abrasion, and daily knocks, so finishes must be durable and comfortable.

• Painting with UV topcoat improves scratch and sweat resistance.
• Silk printing and laser engraving create sharp icons and logos.
• Electroplating or PVD achieves premium metallic effects without weight.
• Soft-touch coatings add warmth and grip for daily wear.

For elderly-focused devices, a low-gloss, anti-slip finish and high-contrast markings improve comfort and readability - small choices that elevate the user experience.

Step 5: Mold Ownership and Cost Transparency

Ownership is a common concern for OEM buyers. We support several models:

• Full ownership: You fund the tool and retain rights.
• Shared ownership: We co-invest; you receive better pricing while we hold exclusive production for a defined period.
• Rental/bridge: For small batches or pilots, we adapt generic tools where feasible to control wearable device mold cost.

Every quote details steel grade, cavity count, lifespan estimate, included trial rounds, and schedule. As a rough guide, smartwatch housing tools often range from USD 5,000 to 15,000, with smaller pendant housings typically lower. Transparent assumptions let you match investment to forecast without over-engineering.

Step 6: Maintenance and Lifecycle Management

A mold is a long-term asset. We run preventive maintenance after each production window - cleaning, lubrication, component inspection, and alignment checks. Tooling parameters and approved settings are archived digitally, so repeat orders restart quickly with known temperatures, pressures, and cycle times. This discipline protects quality metrics and ensures smartwatch mold development scales cleanly as demand increases.

• Balancing Cost, Speed, and Quality

Young brands and new product lines need speed as much as precision. We often pair 3D-printed looks-like samples with soft tooling to prove ergonomics and appearance, then move to hardened steel once the design is validated. This phased approach reduces risk, controls wearable device mold cost, and keeps teams aligned through pilots, pre-orders, and market entry.

• JiAi's One-Stop Tooling Advantage

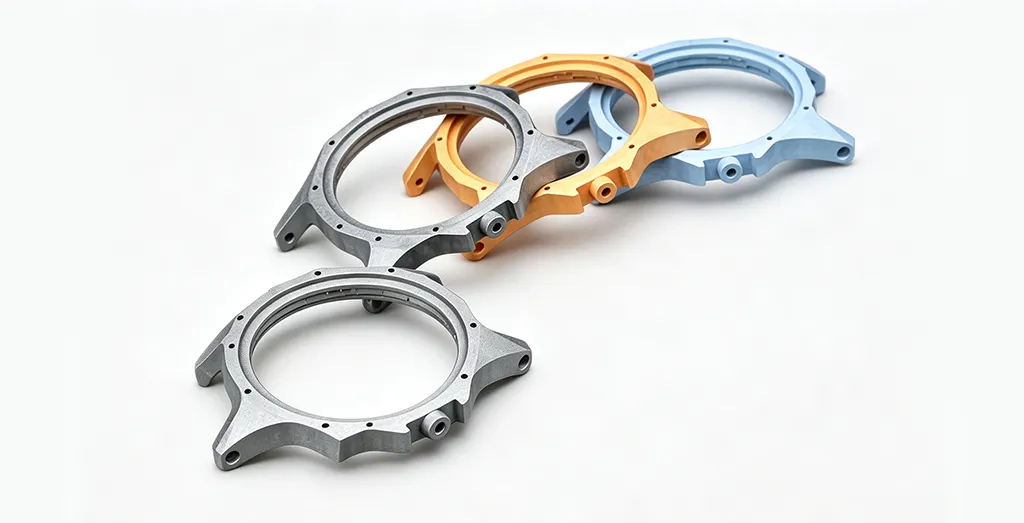

JiAi Intelligent Technology unifies R&D, mold fabrication, finishing, and assembly under one roof. That means faster feedback loops, tighter confidentiality, and fewer handoffs. Our scope spans custom smartwatch tooling, pendant and tracker housings, metal CNC bezels, silicone straps, and TPU overmolding. We also run fit checks with real electronics to confirm gasket compression, antenna clearance, and button feel before ramping volumes.

Final Thoughts

Solid tooling is the foundation of reliable wearables. When you understand each stage - feasibility, design, fabrication, finishing, ownership, and upkeep - you can manage timelines, stabilize cosmetics, and keep wearable device mold cost predictable. At JiAi Intelligent Technology, we combine practical smartwatch mold development expertise with robust injection mold for smartwatch housing practices to bring concepts to life at scale. Share your ID files and forecast, and we'll propose a tooling plan that hits the sweet spot between speed, cost, and long-term quality.
