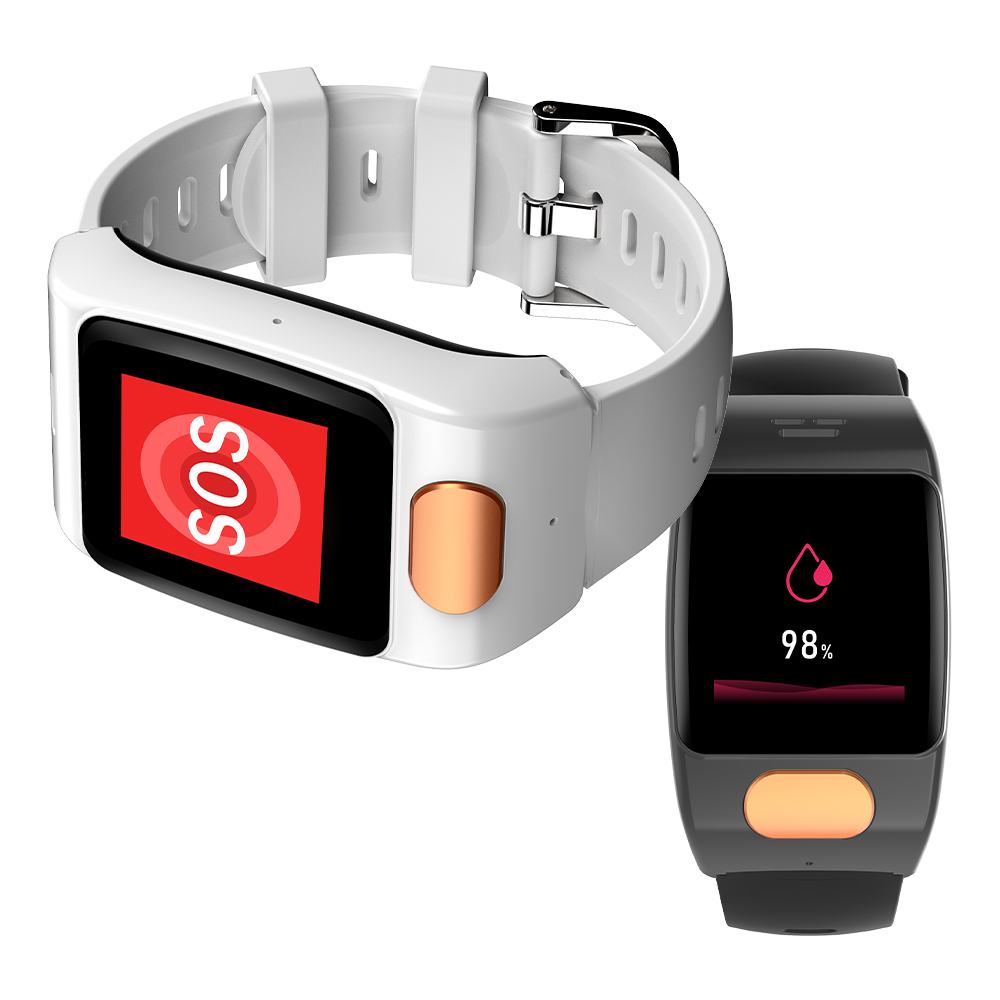

Smartwatch Fall Detection
The Smartwatch with Fall Detection is designed to provide seniors with the ultimate peace of mind. Equipped with advanced fall detection technology, this smartwatch can automatically detect if the wearer has fallen and instantly send an alert to pre-set contacts, such as family members or caregivers.
- Model: L20PRO
- Advanced Fall Detection
- Real-Time GPS Tracking
The Smartwatch with Fall Detection is designed to provide seniors with the ultimate peace of mind. Equipped with advanced fall detection technology, this smartwatch can automatically detect if the wearer has fallen and instantly send an alert to pre-set contacts, such as family members or caregivers.
This life-saving feature ensures that even if the wearer is unable to respond, help will be notified quickly. The smartwatch also includes real-time health monitoring, GPS tracking, and an easy-to-use interface, making it a comprehensive safety solution for seniors.
Instantly detects falls and sends automatic alerts to emergency contacts for quick assistance.
Provides accurate GPS tracking, allowing caregivers to monitor the wearer's location after a fal
Tailor fall detection sensitivity and notification preferences for a personalized safety experience.

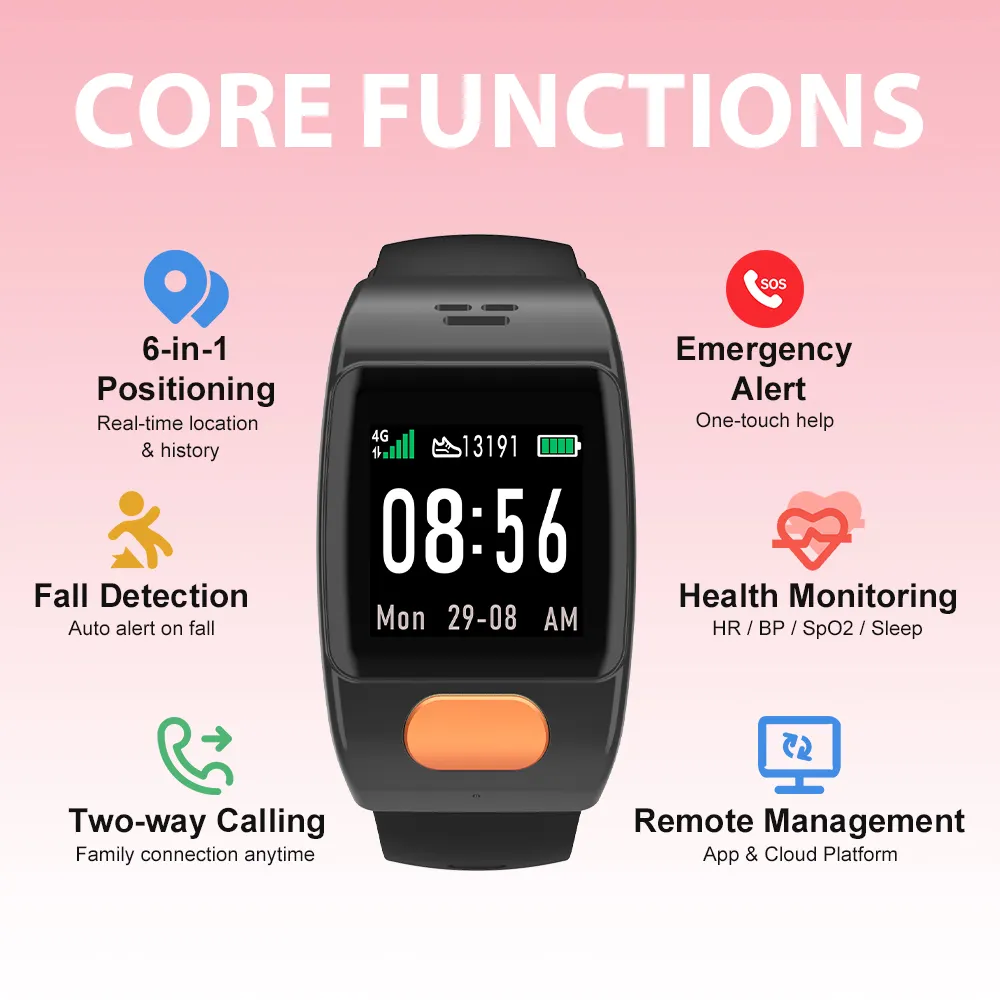

Fall Detection Technology: Automatically detects falls and sends immediate alerts to family or caregivers for quick response.
Real-Time GPS Tracking: Provides accurate location tracking for seniors, ensuring they are safe no matter where they go.
One-Touch SOS Button: In case of emergencies, seniors can press the SOS button to notify contacts and send location information.
Health Monitoring (Optional): Tracks heart rate, step count, and sleep patterns to monitor overall well-being.
Long Battery Life: Extended battery life ensures the smartwatch is always ready, without constant recharging.
Water-Resistant Design: Suitable for daily wear, including in the rain or while washing hands.

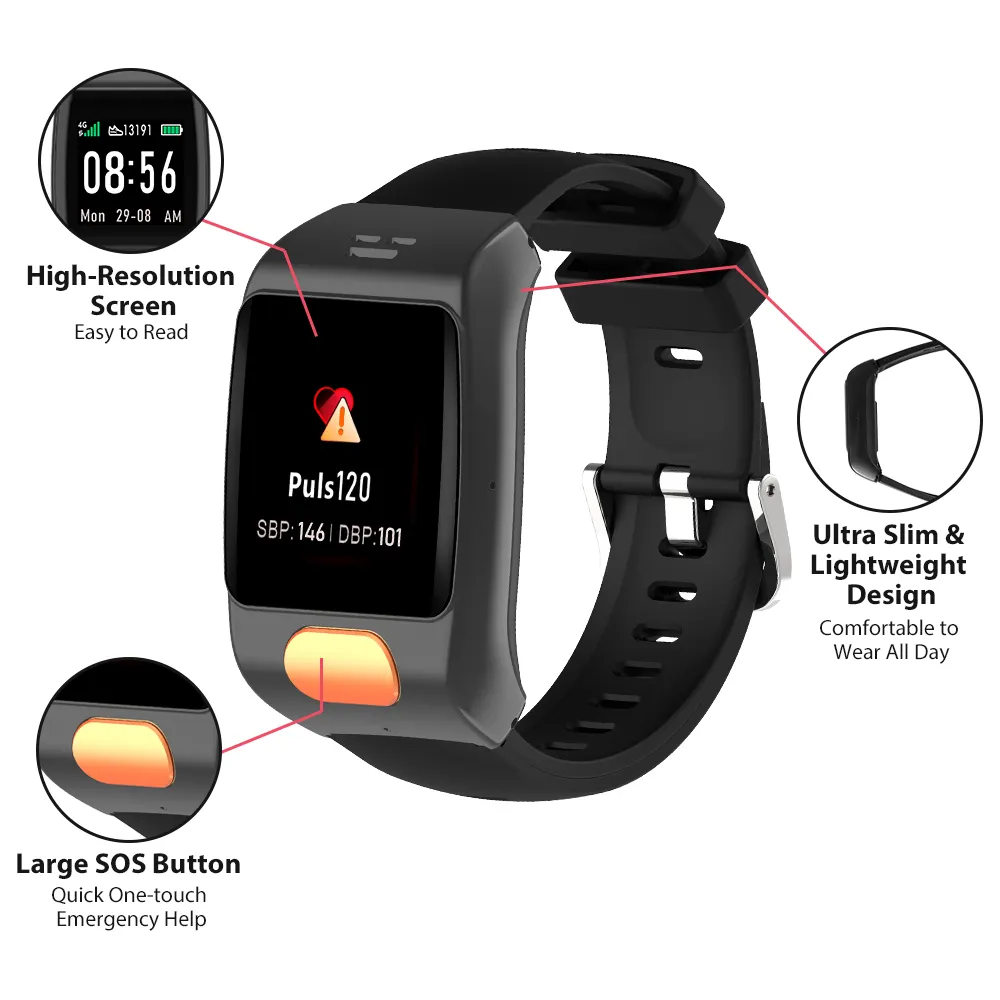

User-Friendly Interface: Large icons and intuitive design make it easy for seniors to navigate the smartwatch.
| Category | Details |
| Model Name | L20 EU |
| Bluetooth Version | BLE 5.0 |
| Waterproof | IP66 |
| Operating System | RTOS Thread X |
| LCD Display | 1.22-inch TFT, 240×240 resolution |
| CPU | Unisoc W307 Cortex A53 1GHz + GR5515 |
| GPS Chip | W307 |
| SIM Card | Nano, compatible with e-SIM |
| Battery Capacity | 900 mAh Lithium Polymer |
| Battery Life | 3-4 days (frequent use), up to 10 days (power save) |
| Charging Port | Magnetic 2-pin base |
| Dimensions | 57 x 34 x 14 mm |
| Available Colors | Black, White (for orders of 3K+ units) |
Frequency Bands
| Region | GSM | 3G WCDMA | LTE |
| EU Version | 850/900/1800/1900 MHz | Band 1, Band 8 | B1, B3, B5, B7, B8, B9, B19, B20, B28, B40, B41 |
| US Version | 850/900/1800/1900 MHz | Band 1, Band 8 | B2, B4, B5, B7, B12, B17, B66 |

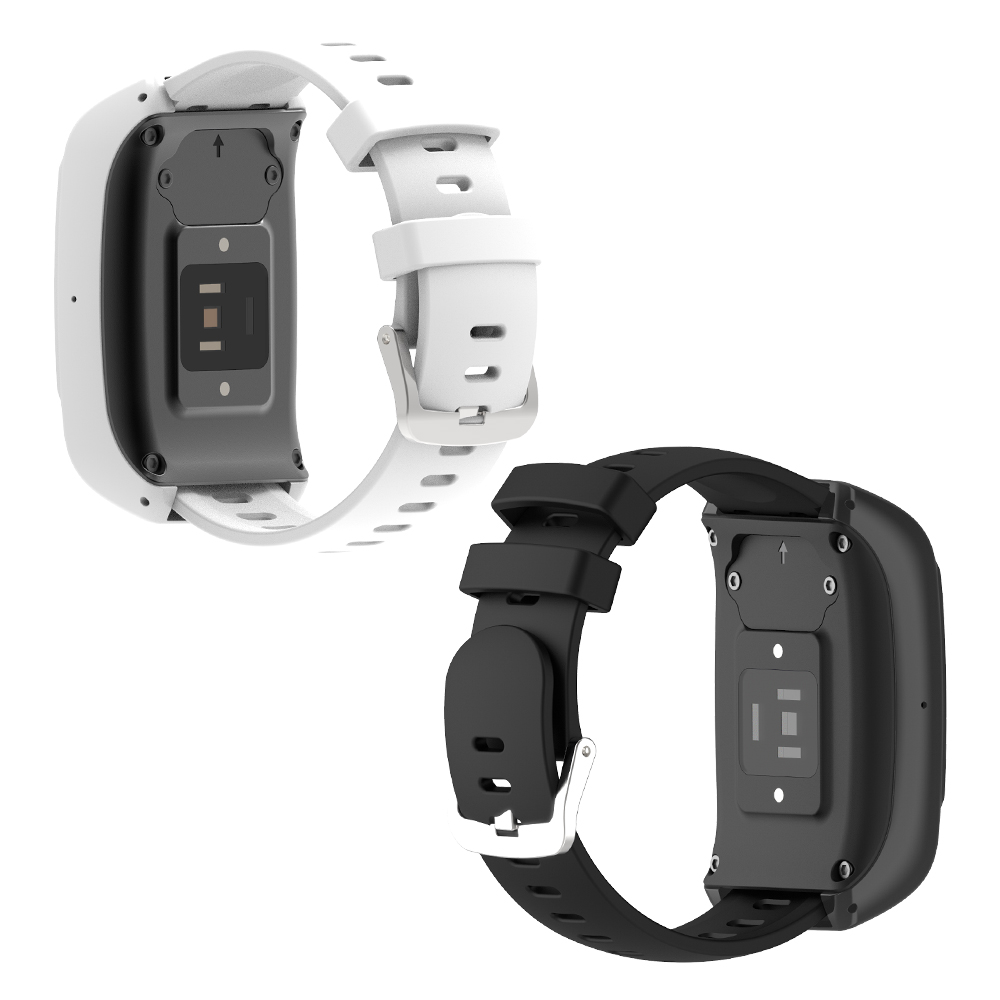

Health Sensors
| Sensor | Details |
| Heart Rate Sensor | PAH8112ES or TBD, supports PPG raw data |
| SPO2 Sensor | Yes |
| Blood Pressure Sensor | Optional |
| Barometer | Optional |
| 3D Accelerator | BOSCH BMA456 or TBD |

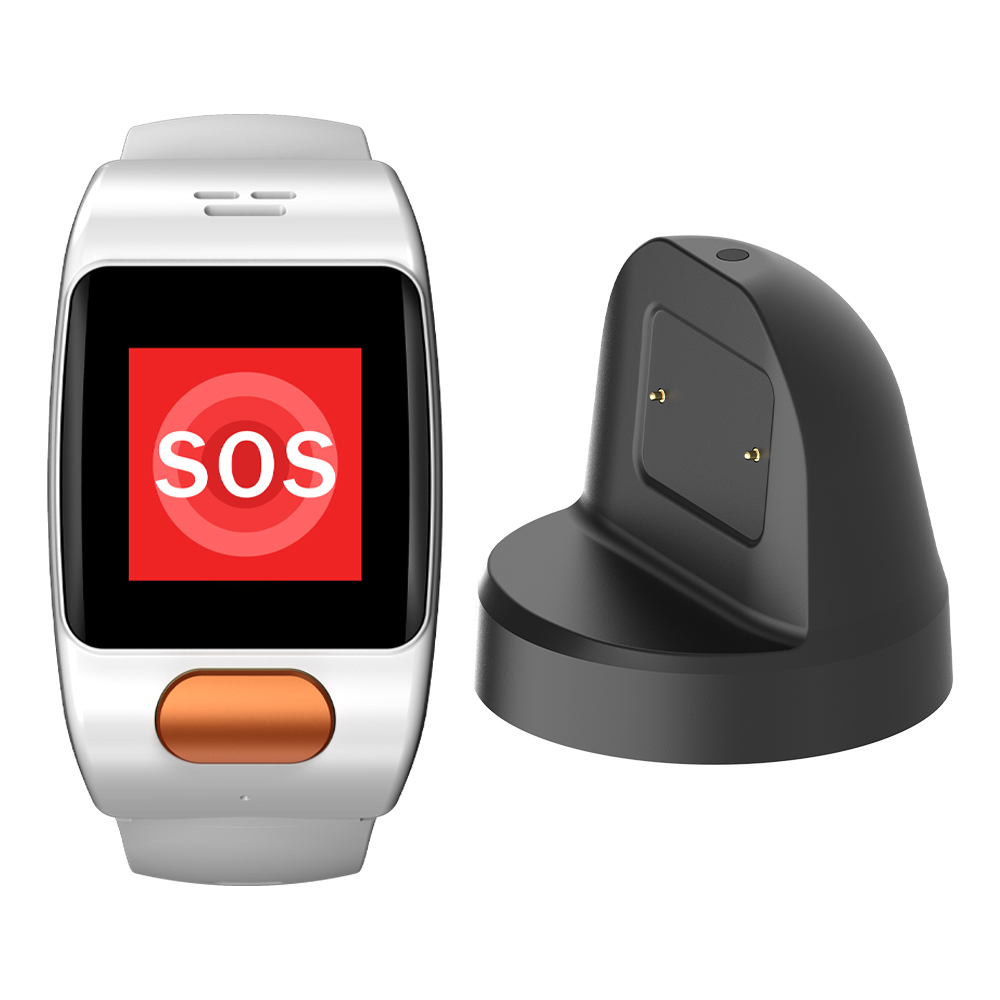

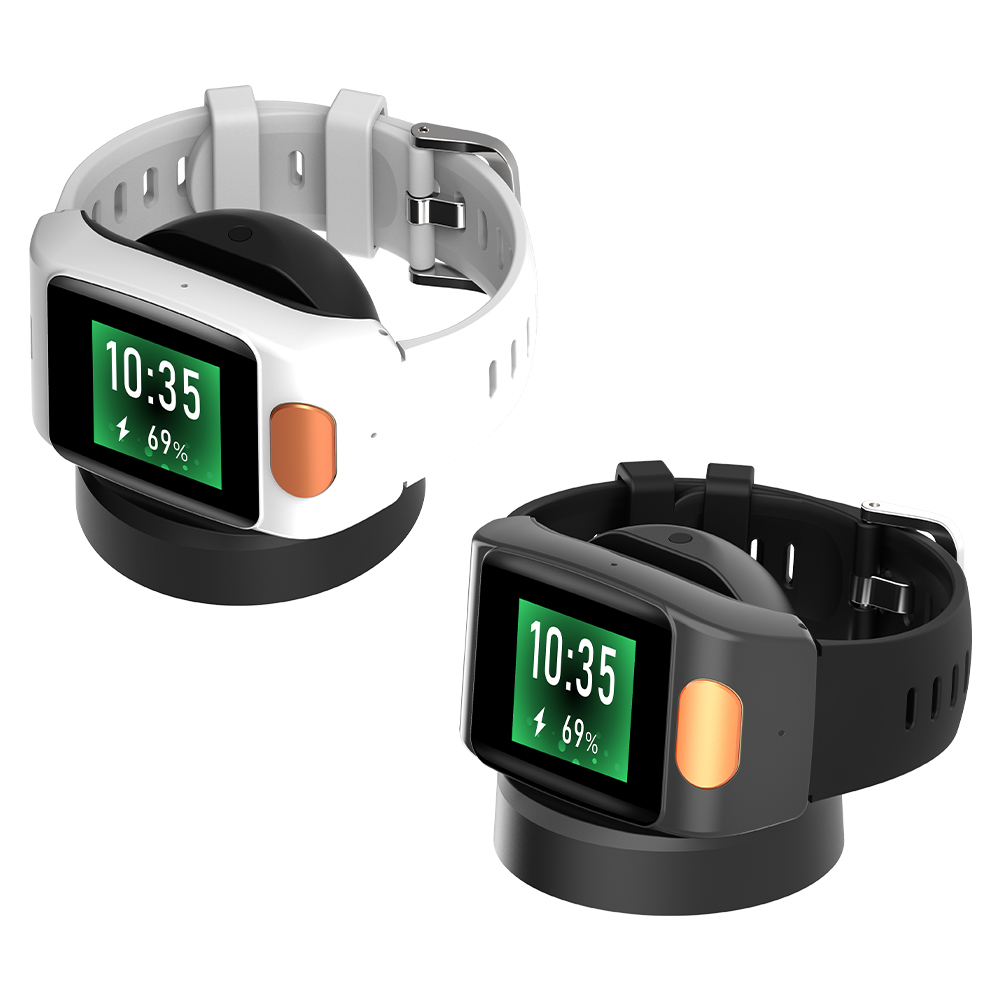

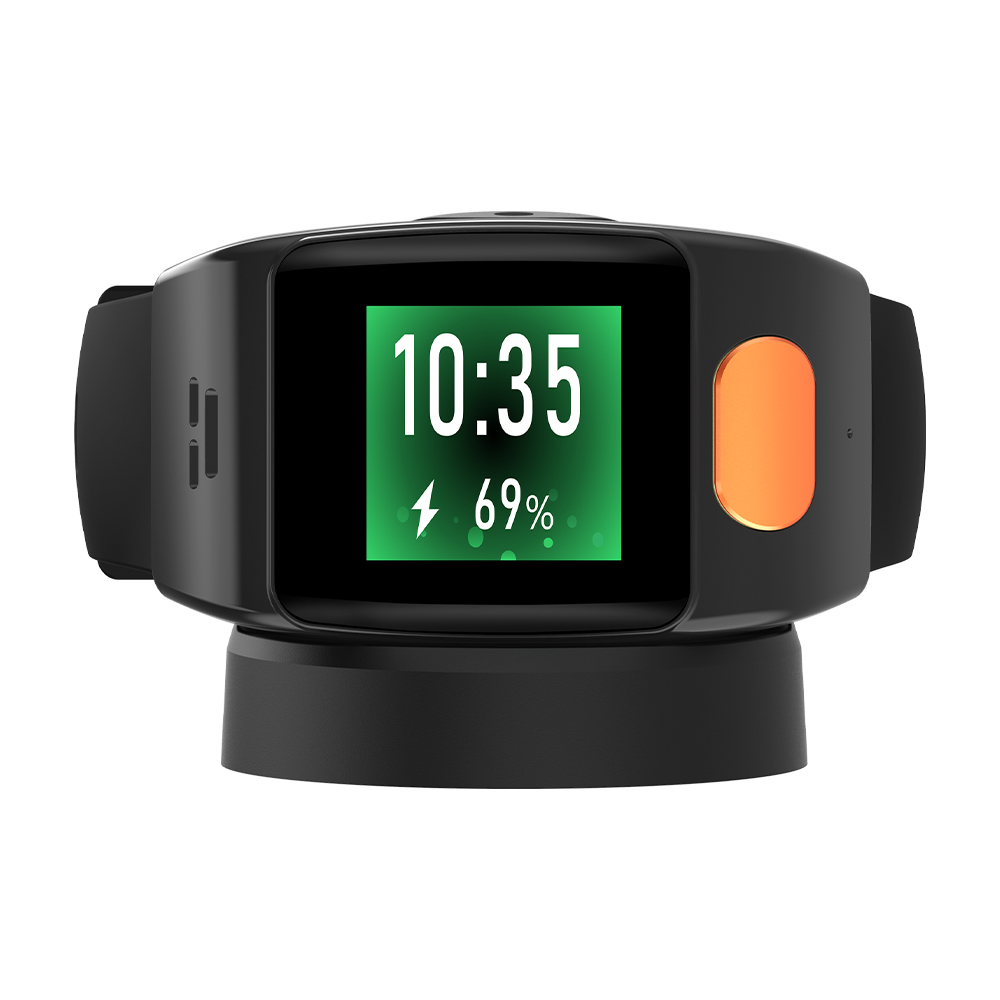

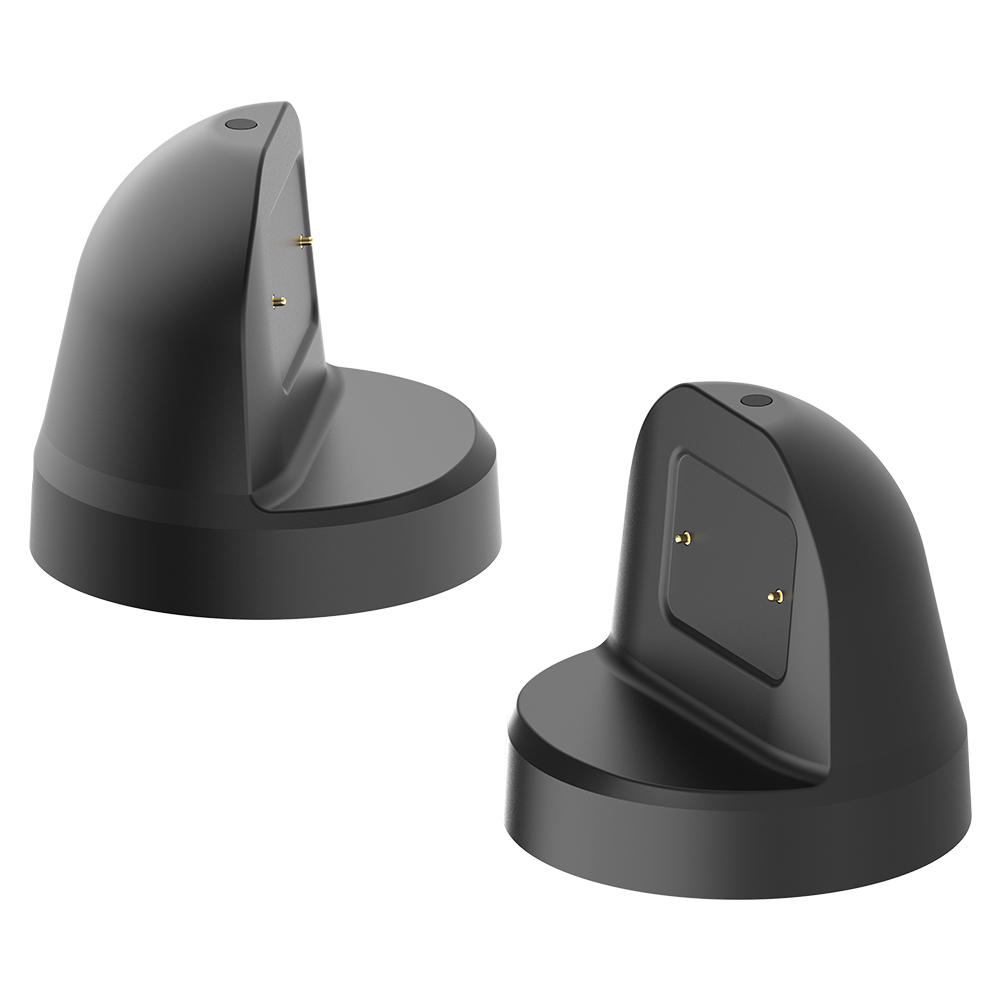

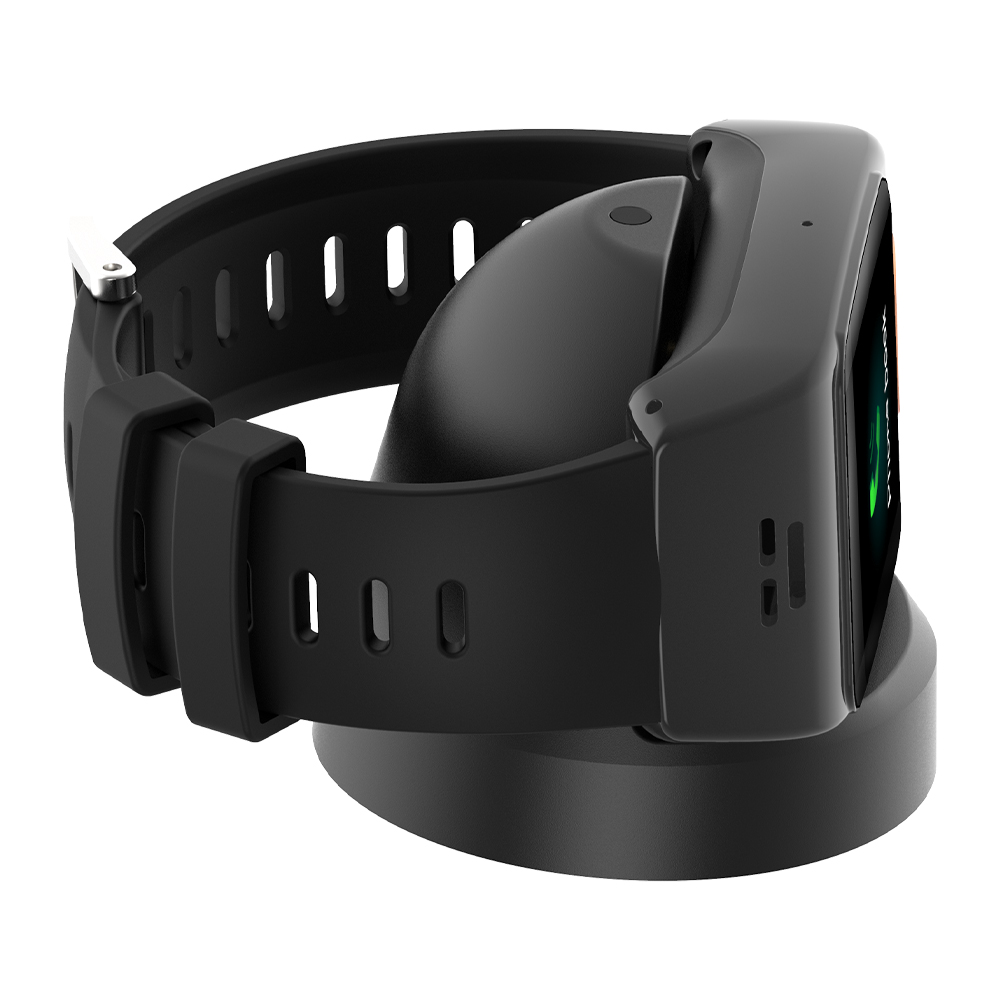

Charging Base Specifications
| Feature | Details |
| Charging Base | |
| Dimension | Φ 44mm x H42mm |
| Weight | 16g |
| Input | 5V 2A |
| Max Output | 1A |
| Color | Black |
| Power Bank | |
| Battery Capacity | 900 mAh Lithium Polymer |
| Charge Duration | Full charge in 4-5 hours |
| Usage Duration | 3-4 days (frequent), 9-10 days (power save) |
| Beacon | |
| BLE Version | BLE 5.0 |
| Advertising Interval | 1000ms |
| Transmission Range | 50 meters in open area |
| Device Name | JABX4 |
Package Contents
| Item | Quantity |
| L20PRO GPS Smartwatch | 1 |
| User Manual (English) | 1 |
| Screwdriver | 1 |
| Pin | 1 |
| EU/UK Adaptor | 1 |
| Gift Box | 1 |
